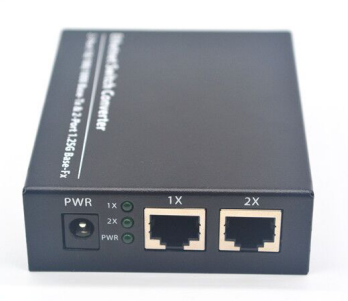

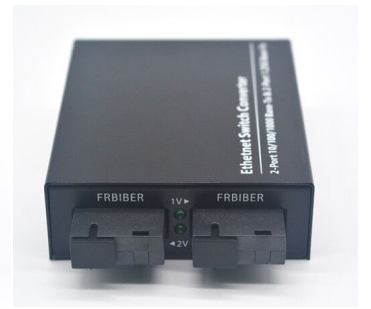

SC Single-Fiber 10/100/1000M with 2 RJ45 Port Base-T to 100 Base-X Managed Media Converter
รายละเอียดสินค้า:
| สถานที่กำเนิด: | จีนเซินเจิ้น |
| ชื่อแบรนด์: | DF/OEM/Nuetral |
| ได้รับการรับรอง: | CE/ROHS/REACH/ISO9001/ISO14001 |
| หมายเลขรุ่น: | SC Single-Fiber 10/100 / 1000M พร้อม 2 พอร์ต RJ45 Base-T ถึง 100 Base-X Managed Media Converter |
การชำระเงิน:
| จำนวนสั่งซื้อขั้นต่ำ: | ต่อรองได้ |
|---|---|
| ราคา: | negotiable denpend on QTY |
| รายละเอียดการบรรจุ: | กล่องตุ่ม+กล่อง |
| เวลาการส่งมอบ: | 5-9 วันทำการขึ้นอยู่กับ QTY |
| เงื่อนไขการชำระเงิน: | Western Union,T/T,MoneyGram/Paypal |
| สามารถในการผลิต: | 1,000 ชิ้น / วัน |
|
ข้อมูลรายละเอียด |
|||
| ชื่อสินค้า: | SC Single-Fiber 10/100 / 1000M พร้อม 2 พอร์ต RJ45 Base-T ถึง 100 Base-X Managed Media Converter | การควบคุมการไหล: | Full Duplex: การควบคุมการไหล; Half Duplex: แรงกดดันด้านหลัง |
|---|---|---|---|
| ตัวเชื่อมต่อ: | 2xRJ45 ขั้วต่อระยะทาง: 100 ม | ระยะทาง:: | MMF 2 กม., SMF 20/40/80/100/120Km, Bi-di 20/40/80/100Km |
| อุณหภูมิในการทำงาน: | -10 ~ 50 ℃ | เก็บอุณหภูมิ: | -40~ 85 ℃ |
| ความชื้น: | 5%~ 90% | ขนาด: | ภายนอก: 90 มม. x72 มม. x 25 มม. ภายใน: 140 มม. x 110 มม. x 30 มม. |
| การรับประกัน: | 1-5 ปี | ตราไฟเบอร์: | คอร์นนิ่ง, YOFC, โอเอฟเอส, ดราก้า |
| เน้น: | SC fiber optic media converter,managed media converter RJ45 ports,Base-T to Base-X converter |
||
รายละเอียดสินค้า
SC Single-Fiber 10/100/1000M with 2 RJ45 Port Base-T to 100 Base-X Managed Media Converter
The DF-MC12 Serial Fiber Media Converter translates signals from twisted-pair 10/100/1000MBase-TX cables to 1000Base-FX fiber optic cables, extending data transmission distance from 100 meters via copper cables to 120 kilometers using fiber optic technology.
Key Features
- Full-duplex and half-duplex auto-sensing
- MDI/MDI-X Auto Negotiation
- 10/100/1000Mbps store-and-forward operation
- 1000Mbps cut-through transmission capability
- Packet size up to 1518 bytes
- Support for VLAN, VoIP, and QoS packets
- Flow control with reduced broadcast packets
- STP support for redundant network formation
- Extremely low power consumption with stable performance
- Multiple installation options: Desktop, Wall-mounted, Chassis, DIN-rail
- External Power Adapter or USB power source compatibility
- DIP Switch for configuration settings
- Support for extra-long packets up to 1600 bytes
- 10/100/1000Mbps auto-sensing for easy upgrades
Technical Specifications
| Standard | IEEE 802.3 Ethernet Media Access Control Protocol, IEEE 802.3i 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3x 1000BASE-TX Fast Ethernet |
|---|---|
| Data Rate | Copper: 10/100/1000M; Fiber: 10/100/1000Mbps |
| Flow Control | Full duplex: flow control; Half duplex: back pressure |
| Copper Port | Number of Copper Ports: 2, Connector: 2xRJ45, Distance: 100m |
| Fiber Port | Number of Fiber Ports: 2, Connector: SC (default), FC/ST optional, Wavelength: TX 1550 nm/RX 1310 nm, Distance: MMF 2Km, SMF 20/40/80/100/120Km, Bi-di 20/40/80/100Km |
| LED Indicators | PWR (power supply); FL/A (optical link/action); FDX (FX full duplex); TL/A (twisted pairs link/action); 100 (100M transmission rate of twisted pairs); FX (100M transmission rate of optical fiber) |
| Power Supply | Working power: DC5V 1A, AC Power Supply: 100V~ AC240V to 5V1A or DC Power Supply: -36~-72V to 5V1A, External/Internal Power Supply Optional |
| Power Consumption | <2W |
| Environment | Operating temperature: -10~55ºC, Storage Temperature: -40~85ºC, Relative Humidity: 5% to 95% non-condensing |
| Dimensions | External: 90mm x 72mm x 25mm, Internal: 140mm x 110mm x 30mm |
| Gross Weight | External: 0.4kg, Internal: 0.5kg |
Why Choose TAKFLY?
- 26+ years of fiber optic manufacturing experience
- 450+ assembly workers with 3+ years experience
- 10+ R&D Engineers dedicated to innovation
- 16 Germany-imported Injection Machines and production lines
- 30+ testing machines including OTDR, 3D, VFL, IL&RL test instruments
- Comprehensive testing equipment for quality assurance
- OEM branding accepted
- Global exhibition participation
Quality Control Process
- Raw material spot checking before production
- Full inspection after every individual process
- Comprehensive half-done production checks
- Complete finished product inspection before packing
- Pre-shipping spot checks
Delivery Information
- Samples: 1-3 working days
- Mass Production Orders: 3-7 working days
- Packaging: Plastic bags, cartons, and pallets available per request
