รายละเอียดสินค้า:

สถานที่กำเนิด: กวางตุ้ง, เซินเจิ้น
ชื่อแบรนด์: TAKFLY
ได้รับการรับรอง: CE,ROHS,REACH,ISO9001,ISO14001
หมายเลขรุ่น: QSFP28-4SFP28-xxx

การชำระเงิน:

จำนวนสั่งซื้อขั้นต่ำ: 1 ชิ้น
ราคา: US$16.18 ~ US$65.12/PC
รายละเอียดการบรรจุ: สปอน+กล่อง+กระดาษแข็ง
เวลาการส่งมอบ: 3-7 วันทำการ
เงื่อนไขการชำระเงิน: L/C,D/A,D/P,T/T,Western Union,MoneyGram
ราคาถูกที่สุด ติดต่อ

ข้อมูลรายละเอียด
เน้น:

1U PLC splitter with full wavelength

,

Fiber optic PLC splitter high uniformity

,

Reverse operation capable PLC splitter

รายละเอียดสินค้า

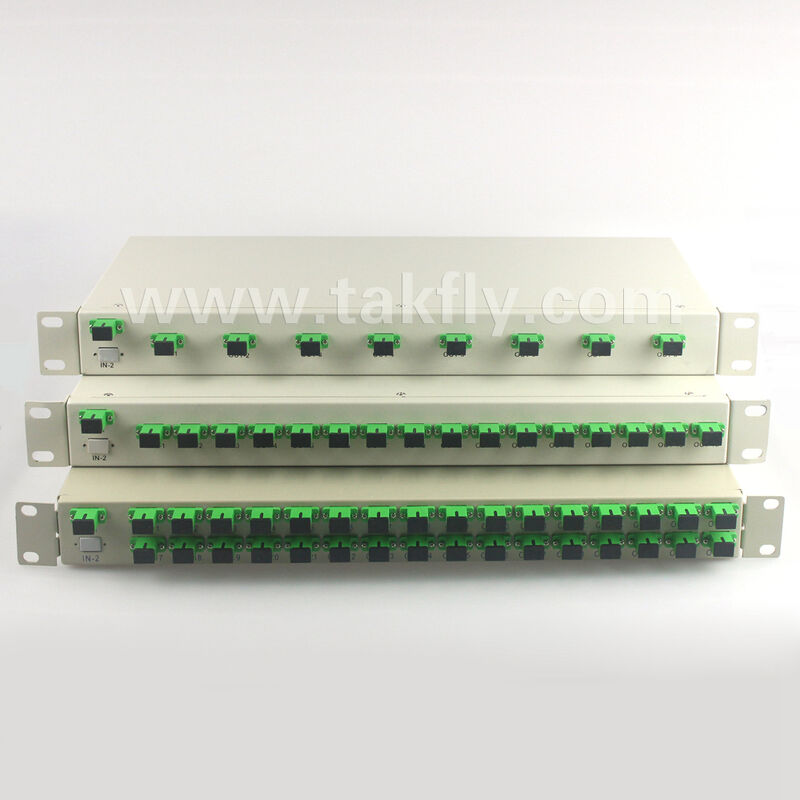

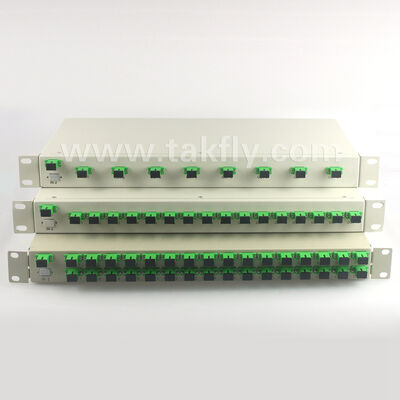

1U PLC Splitter – High Uniformity, Full Wavelength Support, Reverse Operation Capable
This 1U rack mount PLC splitter utilizes planar lightwave circuit technology on quartz substrate for optical power distribution in passive optical networks. Supporting 1×N or 2×N channel configurations, it evenly splits optical signals from one or two input ports to multiple output ports. The device also operates in reverse, combining multiple signals into one or two fibers.
The 19-inch standard 1U enclosure is designed for installation in telecommunication cabinets or fiber distribution frames. With an operating wavelength range of 1260nm to 1650nm, it is compatible with mainstream FTTH and FTTX applications. All splitting uniformity and insertion loss parameters meet IEC 61753-2 standards.
Typical Applications
  • FTTH / FTTX distribution networks
  • Passive optical LAN (POL)
  • CATV optical distribution
  • Data center optical links
  • Fiber distribution frame (ODF) integration
  • Telecommunication Networks
  • PON Systems
  • Video Transmission
Available Options
  • Split ratio: 1×4 / 1×8 / 1×16 / 1×32 / 2×16, etc.
  • Connector type: SC / LC / FC (adapter panel or pigtail)
  • Fiber type: G.657A1 / G.652D
Key Features
  • Broadband Operation Wavelength
  • Low Insertion Loss
  • Low Polarization Dependent Loss (PDL)
  • Compact Design
  • Excellent Channel-to-Channel Uniformity
  • High Reliability and Stability
Technical Specifications
Performance Parameters
Parameter Value
Operating Wavelength (nm) 1260 ~ 1650
Fiber Type ITU-T G657A1, G657A2 and G.652D
Max. Temperature Stability (dB) 0.5 (Typical 0.3)
Operating Temperature (°C) -40 ~ +85
Storage Temperature (°C) -40 ~ +85
1×N Splitter Performance
Type 1×2 1×4 1×8 1×16 1×32 1×64
Max. Insertion Loss (dB) 3.9 7.2 10.3 13.5 16.8 20.3
Max. Uniformity (dB) 0.8 0.8 0.8 1.0 1.5 2.0
Max. PDL (dB) 0.2 0.3 0.3 0.3 0.3 0.5
2×N Splitter Performance
Type 2×2 2×4 2×8 2×16 2×32 2×64
Max. Insertion Loss (dB) 4.2 7.5 10.6 13.9 17.2 20.8
Max. Uniformity (dB) 0.8 1.0 1.2 1.5 1.8 2.0
Max. PDL (dB) 0.2 0.3 0.3 0.3 0.3 0.5
Note: All measurements made at room temperature, connectors not included. Minimum Return Loss: 55 dB for all types.
Packaging Dimensions
1×N Splitter Packaging
Package Type 1×2 1×4 1×8 1×16 1×32 1×64
Basic Metal Box (L×W×H mm) 40×4×4 40×4×4 40×4×4 50×7×4 60×7×4 60×12×4
Mini Module Metal Box (mm) 60×7×4 60×7×4 60×7×4 60×12×4 80×20×6 100×40×6
Module Plastic Box (mm) 100×80×10 100×80×10 100×80×10 120×80×18 120×80×18 140×115×18
Rack Mount (mm) 483×250×44.5 483×250×89
2×N Splitter Packaging
Package Type 2×2 2×4 2×8 2×16 2×32 2×64
Basic Metal Box (L×W×H mm) 60×7×4 60×7×4 60×7×4 60×7×4 60×7×4 80×12×4
Mini Module Metal Box (mm) 70×7×4 70×7×4 70×7×4 80×12×4 80×20×6 100×40×6
Module Plastic Box (mm) 100×80×10 100×80×10 100×80×10 120×80×18 120×80×18 140×115×18
Rack Mount (mm) 483×250×44.5 483×250×89
Frequently Asked Questions
Are you a manufacturer?
Yes, we are a manufacturer and FTTH solution/data center total solution provider based in Shenzhen, China, established in 2000.
What's your MOQ?
MOQ can be 1 piece, but pricing becomes more competitive with larger quantities.
Can you quote FOB price?
Yes. We deliver via air (DHL, TNT, UPS, FEDEX) or sea for large quantities. We provide quotes with freight and lead times based on your detailed requirements.
How is your quality?
Our production follows IEC and European standards with CE, ISO, RoHS, CPR, and ANATEL certifications. All products are 100% tested before delivery.
What's your lead time?
Depends on quantity and product type. Fiber optic patch cords: 2-3 working days for up to 5,000 pieces. We stock regular products and accommodate urgent orders.
What's your warranty?
1-year warranty for patch cords (non-artificial damage). For artificial damage, we provide free repair with customer covering freight costs.
What's your packing?
International export standard packaging. Custom logo printing available upon request.
Can you offer OEM/ODM?
Yes, all products accept OEM/ODM. We can sign Confidentiality Agreements.
Can I have a sample?
Free samples available for products under $10. Buyer pays freight before delivery.
How can I order?
1. Send inquiry with product specifications and quantity.
2. We provide quotation with lead time.
3. Confirm quotation and receive PI.
4. Production begins after payment.
5. Confirm consignee details.
6. Receive tracking number after delivery.
What is your payment term?
T/T, Western Union, Paypal, MoneyGram. For large amounts: 50% deposit, 50% balance before delivery.
With the same quality standards, if you find better pricing elsewhere, TAKFLY can match it. Our team brings 3+ years of optical fiber industry experience to provide professional product assistance.
