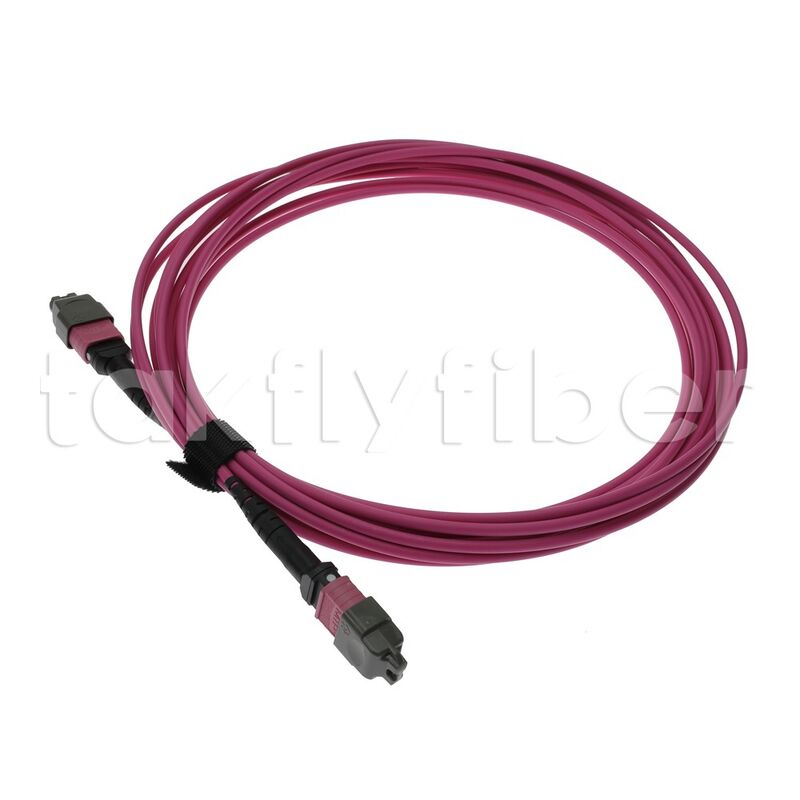

CPR B2ca MTP® 12 Cores MPO Trunk Cable, F to F, UPC, 12F, OM4, OFNP, 0.20dB, Type B
รายละเอียดสินค้า:
| Place of Origin: | Shenzhen, China |
| ชื่อแบรนด์: | Neutral/OEM/Takfly |
| ได้รับการรับรอง: | CE/ROHS/REACH/CPR/ISO9001/ISO14001 |
| Model Number: | TK-PC-MTP-12F-OM4-OFNP-005 |
การชำระเงิน:
| Minimum Order Quantity: | 1 |
|---|---|
| ราคา: | US$0.01~US$25.99/PC |
| Packaging Details: | PE bag |
| Delivery Time: | 3-7working days |
| Payment Terms: | Western Union, L/C, T/T,Paypal |
| Supply Ability: | 500PCS/Day |
|
ข้อมูลรายละเอียด |
|||
| Cores: | 12F | Fiber Type: | MM OM4 |
|---|---|---|---|
| Length: | 1M/5M/15M or customized | Cable Diameter: | 3.0mm |
| Connector Type: | MPO/MTP | Insertion Loss: | Low loss: 0.35dB |
| Return Loss: | MM ≥20dB | Cable Jacket: | OFNP |
| Cable Color: | Magenta, Violet | Application: | Data Center, Telecom, Network |
| ได้รับการรับรอง: | CE, ROHS, REACH, CPR, ISO9001, ISO14001 | Product Name: | 12F Fiber Optic Harness MPO-LC Uniboot MPO Breakout Patch Cable, Plenum (OFNP), 0.35dB Max. |
| เน้น: | MTP 12 core MPO trunk cable,OM4 MPO fiber optic cable,12F MPO cable with warranty |
||
รายละเอียดสินค้า
CPR B2ca MTP® 12 Cores MPO Trunk Cable, F to F, UPC, 12F, OM4, OFNP, 0.20dB, Type B
Takfly's MTP® MPO trunk cables are factory pre-terminated and rigorously tested, featuring reliable MTP®-MTP® connectors. The ultra-low loss MTP® connectors minimize signal loss during transmission, supporting long-distance applications and multiple connection areas. The robust double-jacket sheath enhances crush resistance, ensuring durability and performance over long-distance runs. These features make MTP® trunks an ideal choice for high-density cabling in data centers, widely used in main, horizontal, and zone distribution areas.
MPO Fiber Optic Patch Cable Specifications
| Item | LC / SC / ST / FC | MPO / MTP |
|---|---|---|
| End face type | PC / UPC / APC | PC and APC |
| Fiber type | SM (G652 / G655 / G657); MM (OM1-OM5) | |
| Core number | 2 / 4 / 6 / 8 / 12 / 24 | |
| Cable Diameter | 0.9 / 2.0 / 3.0 | Mini Round cable: Max 4.5mm; Ribbon cable: Max 3.0*5.0mm |
| Insertion loss (dB) | ≤ 0.3 | Standard: ≤0.35/0.7 (Typical/Max) Low Loss: ≤0.2/0.35 (Typical/Max) |
| Return loss (Min) | UPC SM: 40dB APC SM: 60 dB PC MM: 25 dB |
SM: APC: 60dB MM: PC: 20dB |
| Test Wavelength (nm) | SM: 1310/1550 MM: 850/1300 |
|
| Repeatability | ≤ 0.1dB | |
| Durability | ≤ 0.2dB | |
| Interchangeability | ≤ 0.2dB | |
| Operating Temperature | -20℃~70℃ | |
| Storage Temperature | -40℃~80℃ | |
| Outer Sheath Material | OFNP/LSZH | |
| Bending radius (Static/Dynamic) | 10D/20D | |
| Length | Customized | |
Features
- Fiber and Cable Options: Available in SM (G.657A1), OM4
- Compact LSZH cable jackets available
- Jacket Standard Colors: G.657A1 - Yellow, OM4 - Aqua or Erika Violet
MPO Interface
- Female and Male MPO connectors available
- Base-8, Base-12 available (for Base-16, and Base-24 contact sales rep)
- Standards-based polarity options available
- Base 8 - Pol B/QSFP
- Base 12 - Polarity A, B & C
Optimized Performance
- Low-loss Premium MPO connectors and Bend Insensitive fiber assure low insertion losses and reduced power penalties in tight budget high-speed network environments
- 100% factory tested for proven reliability and connectivity
- Manufactured in accordance with TIA 568 and IEC 61754 standards
Benefits
- Next Generation Network Speeds: Assemblies can be used throughout multiple active equipment upgrades to future-proof your network
- Modular connectivity supports 400G/800G migration plans
- Factory terminated assembly saves installation and reconfiguration time during moves, adds and changes
- Configurable length assemblies reduce slack management, patch field congestion, and improve air-flow
Applications
- Data Center
- Campus
- Central Office
- Office Backbone
Polarity
Takfly MTP MPO Patch Cable Production Flow Diagram
Why Choose TAKFLY
Professional Manufacturer
- More than 25 years manufacturing experience in fiber optic products - one stop purchasing
- More than 450 assembly workers with 3+ years experience
- More than 26 R&D Engineers
- 16 Sets Germany imported Injection Machines and 10+ Cable Production Lines
- 30+ sets of Testing Machines: OTDR, 3D, VFL, IL&RL test instrument; tension strength tester, crush resistance tester, power meter tester, light checker, etc.
- OEM Brand acceptable
- Worldwide Exhibition participation
- 24/7 After-sales Services
Quality Control
- Spot check raw material incoming inspection before production
- Full check after every individual process
- Full check production half done
- Full check finished products before packing
- Spot check before shipping
Delivery
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
Shipping
- DHL, UPS, FEDEX, TNT, EMS (3-5 working days)
- By Sea or By Air using your preferred forwarder or our partnered one
Payment Term: T/T, Paypal, Western Union and L/C available
Price: Negotiable for large quantities
