10/100M Base-T to 100 Base-X Managed Media Converter Factory Direct S Factory Direct Sales Reliable Network Connection Factory Direct Sales Reliable Network Connection
รายละเอียดสินค้า:
| สถานที่กำเนิด: | จีนเซินเจิ้น |
| ชื่อแบรนด์: | DF/OEM/Nuetral |
| ได้รับการรับรอง: | CE/ROHS/REACH/ISO9001/ISO14001 |
| หมายเลขรุ่น: | ตัวแปลงสื่อที่มีการจัดการ 10/100M Base-T ถึง 100 Base-X |
การชำระเงิน:
| จำนวนสั่งซื้อขั้นต่ำ: | ต่อรองได้ |
|---|---|
| ราคา: | negotiable denpend on QTY |
| รายละเอียดการบรรจุ: | กล่องตุ่ม+กล่อง |
| เวลาการส่งมอบ: | 5-9 วันทำการขึ้นอยู่กับ QTY |
| เงื่อนไขการชำระเงิน: | Western Union,T/T,MoneyGram/Paypal |
| สามารถในการผลิต: | 1,000 ชิ้น / วัน |
|
ข้อมูลรายละเอียด |
|||
| ชื่อสินค้า: | ตัวแปลงสื่อที่มีการจัดการ 10/100M Base-T ถึง 100 Base-X | อัตราข้อมูล: | การตรวจจับอัตโนมัติแบบฮาล์ฟ/ฟูลดูเพล็กซ์ 10Mbps, 100Mbps |
|---|---|---|---|
| ตัวเชื่อมต่อ: | เอสที, เซาท์แคโรไลนา, เอฟซี | อุณหภูมิในการทำงาน: | 0 ~ 50 ℃ |
| ความชื้น: | 5%~ 90% | เก็บอุณหภูมิ: | -10~ 70 ℃ |
| ตรงตามมาตรฐาน: | IEEE802.3z, IEEE802.3u, IEEE802.3x และ IEEE802.3ah | การรับประกัน: | 1-5 ปี |
| ตราไฟเบอร์: | คอร์นนิ่ง, YOFC, โอเอฟเอส, ดราก้า | ||
| เน้น: | 10/100M Base-T media converter,100 Base-X fiber optic converter,managed media converter with warranty |
||
รายละเอียดสินค้า

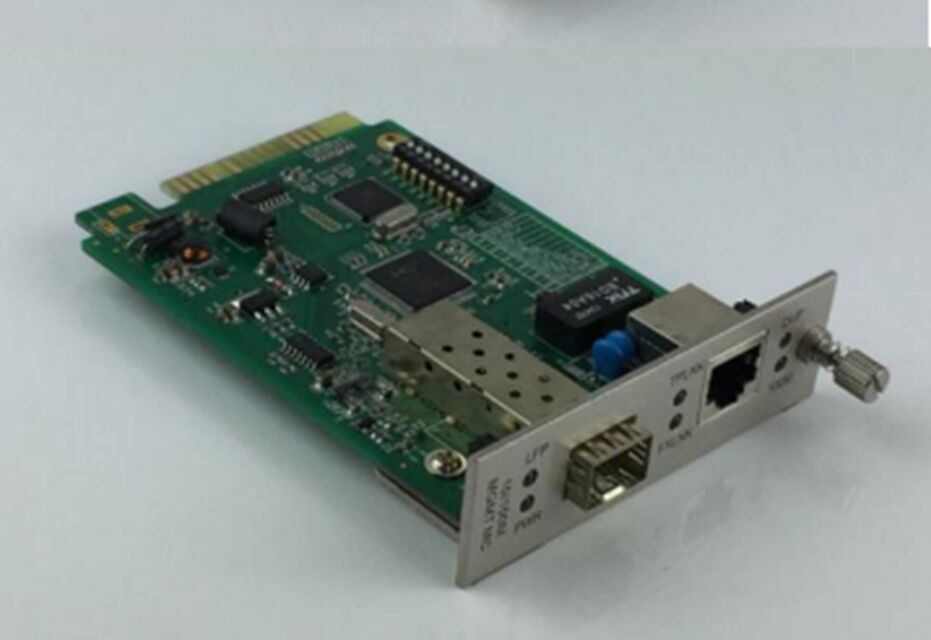

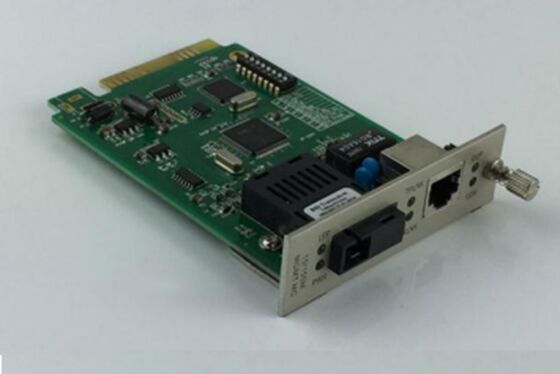

10/100M Base-T to 100 Base-X Managed Media Converter
Factory direct sales of reliable network connection media converters offering superior performance and comprehensive management capabilities.
Product Overview
10/100M manageable fiber media converters deliver exceptional price-to-performance ratio, covering all functions of non-manageable converters including various data rates, single-mode/multi-mode, and single/double fiber configurations. Featuring simple setup and comprehensive management interface, these converters support SNMP, WEB, TELNET, and CONSOLE protocols for integrated chassis management.
Hardware Features
- Support for 10Base-T and 100Base-T standards
- Compliance with IEEE802.3z, IEEE802.3u, IEEE802.3x and IEEE802.3ah standards
- High-performance auto-sensing exchange chipset meeting industrial standards
- Steady, non-congested data transmission and exchange
- Maximum 2046 bytes packet at store-and-forward mode
- Maximum 9K bytes packet at cut-through mode
- AUTO-MDIX at electrical port for user convenience
- Low power consumption and heat generation
- Standalone type with 10W special communication power supply
- Chassis with dual redundant power supply options
- Hot-swappable media converter cards and management cards
- Single fiber or double fiber configurations available
Management and Control Advantages
- Master-slave structure supporting up to 4 cascading chassis
- Management card failure doesn't affect other modules
- Remote and local management capabilities
- Support for CONSOLE, WEB, and SNMP protocols
- Management interfaces: RS232 Console Port (RJ45) and 10/100/1000Mbps RJ-45 Ethernet port
- Complete system information configuration and display
- Support for Q-in-Q Double Tag VLAN, IEEE802.1q Tag VLAN, and IEEE802.3x Flow control
- Real-time power supply monitoring and status tracking
- Voltage and temperature monitoring on media converter cards
- Comprehensive port configuration and status tracking
- Rate limiting with flexible bandwidth control
- Link Loopback testing for precise fault location
- Remote power off alarming for accurate failure identification
- SNMP protocol support with trap destination configuration
- MIB files provided for third-party software integration
- Historical alarming and operating log management
- Flow statistics and pre-alarming functions
- Equipment remote-restart capability
- Graded management modes with user identification
Technical Specifications
| Interface Type | Specifications |
|---|---|
| Ethernet Interface | IEEE802.3z, IEEE802.3u, IEEE802.3x and IEEE802.3ah Data rates: 10Mbps, 100Mbps half/full duplex auto-sensing RJ-45 connector UTP CAT5/CAT5E, 100m transmission distance at 100m |
| Fiber Port | Connectors: ST, SC, FC Wavelength: 850nm, 1310nm (Multi-mode); 1310nm, 1550nm (Single-mode) Fiber types: Multi-mode 50/125, 62.5/125, 100/140μm Single-mode 8.3/125, 8.7/125, 9/125, 10/125μm |
| Operating Environment | Operating Temperature: 0~50°C Storage Temperature: -10~70°C Humidity: 5%~90% (non-condensing) |
Why Choose TAKFLY
- 26+ years of fiber optic manufacturing experience
- 450+ assembly workers with 3+ years experience
- 10+ R&D Engineers dedicated to innovation
- 16 Germany-imported Injection Machines and production lines
- 30+ testing machines including OTDR, 3D, VFL, IL&RL test instruments
- Comprehensive testing equipment for quality assurance
- OEM branding accepted
- Global exhibition participation
Quality Control Process
- Raw material spot checking before production
- Full inspection after every individual process
- Comprehensive half-done production checks
- Complete finished product inspection before packing
- Pre-shipping spot checks
Delivery Information
- Samples: 1-3 working days
- Mass Production Orders: 3-7 working days
- Packaging: Plastic bags, cartons, and pallets available per request
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
Please provide your email or contact information through our website to receive our catalogue and price list.
Q2: Can I negotiate the prices?
Yes, we may consider discounts for multiple container loads of mixed goods.
Q3: How much will the shipping charges be?
Shipping charges depend on your shipment size and shipping method. We will provide charges upon request.
Q4: Can I visit you?
Certainly! Our factory is located in Shenzhen, China. Please contact us to schedule an appointment.
Q5: What if there is quality problem when we get the goods?
If you encounter quality issues upon unpacking, please take photos for our reference. Our QC department will investigate and provide the best solutions, along with implementing quality improvements for future production.
Q6: What is your terms of packing?
We typically pack goods in blister boxes and cartons, but can accommodate custom packaging requests from customers.
Q7: What is your terms of payment?
T/T 30% as deposit, and 70% balance before delivery. We provide photos of products and packaging before final payment.
Q8: What is your terms of delivery?
EXW, FOB, CFR, CIF, DDU
Q9: How about your delivery time?
Generally 5-7 working days after receiving advance payment. Specific delivery time depends on items and order quantity.
Q10: Can you produce according to the samples?
Yes, we can manufacture products based on your samples or technical drawings.
If you're interested in our products or have any questions, feel free to contact us at any time!
